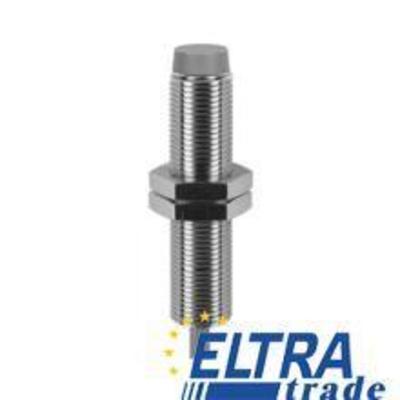

Baumer IR12.P10S-N50.NC1Z.7BCV Inductive proximity switch

Baumer IR12.P10S-N50.NC1Z.7BCV
Item Number: IR12.P10S-N50.NC1Z.7BCV
mounting typenon-flush
special typeenhanced distance (GammaProx)
nominal sensing distance Sn10 mm
output circuitNPN break function (NC)
operating temperature-25 ... +75 °C
83.93
Quantity
-
+
Total price: 83.93
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
output indicator LED red
temperature drift ± 10 % (0 ... +60 °C)
± 15 % (-25 ... +75 °C)
special type enhanced distance (GammaProx)
operating temperature -25 ... +75 °C
housing length 50 mm
type cylindrical threaded
correction factor typ. mild steel 100 %, stainless steel 75 %, aluminum 50 %
switching frequency < 1,5 kHz
reverse polarity protection yes
manufacter SKUIR12.P10S-N50.NC1Z.7BCV
nominal sensing distance Sn 10 mm
connection types cable, 2 m
hysteresis 3 ... 20 % of Sr
voltage supply range +Vs 6 ... 36 VDC
output circuit NPN break function (NC)
current consumption max. (no load) 10 mA
short circuit protection yes
mounting type non-flush
material (sensing face) PBT
IR12.P10S-N50.NC1Z.7BCV dimension 12 mm
housing material brass nickel plated
voltage drop Vd < 2 VDC
tightening torque max. 15 Nm (A: 10 Nm)
protection class IP 67
output current < 100 mA
