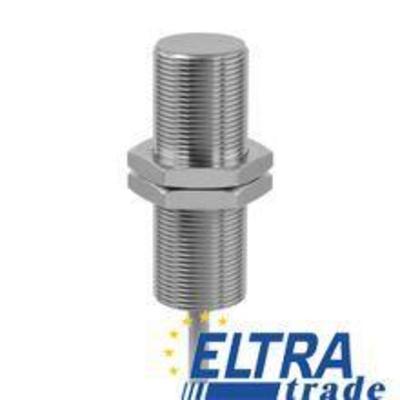

Baumer IR18.P06F-F50.PC1Z.7BCV Inductive proximity switch

Baumer IR18.P06F-F50.PC1Z.7BCV
Item Number: IR18.P06F-F50.PC1Z.7BCV
mounting typeflush
special typefactor 1
nominal sensing distance Sn6 mm
output circuitPNP break function (NC)
operating temperature-25 ... +75 °C
70.29
Quantity
-
+
Total price: 70.29
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
connection types cable, 2 m
housing length 50 mm
current consumption max. (no load) 12 mA
switching frequency < 500 Hz
nominal sensing distance Sn 6 mm
tightening torque max. 40 Nm
output circuit PNP break function (NC)
storage temperature -40 ... +85 °C
mounting type flush
reverse polarity protection yes
manufacter SKUIR18.P06F-F50.PC1Z.7BCV
voltage supply range +Vs 5 ... 36 VDC
output current < 200 mA
IR18.P06F-F50.PC1Z.7BCV dimension 18 mm
type cylindrical threaded
protection class IP 67
special type factor 1
output indicator LED red
material (sensing face) PBT
operating temperature -25 ... +75 °C
voltage drop Vd < 2 VDC
hysteresis 3 ... 20 % of Sr
short circuit protection yes
housing material brass nickel plated
