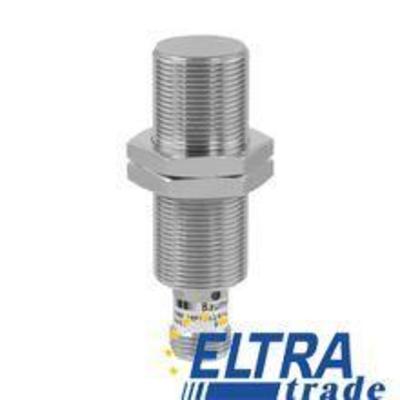

Baumer IR18.P06F-F60.NC1Z.7BO Inductive proximity switch

Baumer IR18.P06F-F60.NC1Z.7BO
Item Number: IR18.P06F-F60.NC1Z.7BO
mounting typeflush
special typefactor 1
nominal sensing distance Sn6 mm
output circuitNPN break function (NC)
operating temperature-25 ... +75 °C
60.06
Quantity
-
+
Total price: 60.06
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
reverse polarity protection yes
protection class IP 67
housing material brass nickel plated
material (sensing face) PBT
voltage drop Vd < 2 VDC
operating temperature -25 ... +75 °C
mounting type flush
output current < 200 mA
current consumption max. (no load) 12 mA
short circuit protection yes
output circuit NPN break function (NC)
voltage supply range +Vs 5 ... 36 VDC
storage temperature -40 ... +85 °C
special type factor 1
housing length 60 mm
manufacter SKUIR18.P06F-F60.NC1Z.7BO
output indicator 3 port LED red
switching frequency < 500 Hz
type cylindrical threaded
tightening torque max. 40 Nm
hysteresis 3 ... 20 % of Sr
nominal sensing distance Sn 6 mm
connection types connector M12
IR18.P06F-F60.NC1Z.7BO dimension 18 mm
