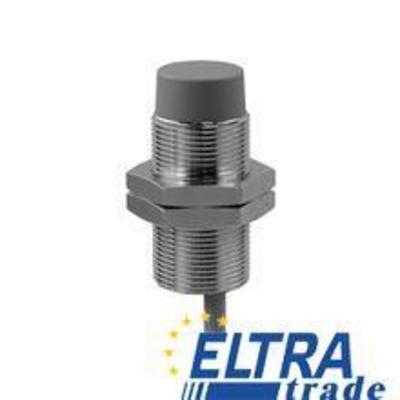

Baumer IR18.P15S-N35.PC1Z.7BCV Inductive proximity switch
Item Number: IR18.P15S-N35.PC1Z.7BCV
| mounting type | non-flush |
| special type | enhanced distance (GammaProx) |
| nominal sensing distance Sn | 15 mm |
| output circuit | PNP break function (NC) |
| operating temperature | 0 ... +65 °C |
- Overview
- Datasheet
- Alternative numbers
- Comments
| connection types | cable, 2 m |
| manufacter SKU | IR18.P15S-N35.PC1Z.7BCV |
| correction factor typ. | mild steel 100 %, stainless steel 85 %, aluminum 55 % |
| mounting type | non-flush |
| material (sensing face) | PBT |
| nominal sensing distance Sn | 15 mm |
| type | cylindrical threaded |
| output circuit | PNP break function (NC) |
| protection class | IP 67 |
| short circuit protection | yes |
| hysteresis | 3 ... 20 % of Sr |
| temperature drift | - 5 % / + 10 % (+10 ... +60 °C) - 5 % / + 15 % (0 ... +65 °C) |
| voltage supply range +Vs | 6 ... 36 VDC |
| reverse polarity protection | yes |
| operating temperature | 0 ... +65 °C |
| output indicator | LED red |
| voltage drop Vd | < 2 VDC |
| IR18.P15S-N35.PC1Z.7BCV dimension | 18 mm |
| housing material | brass nickel plated |
| current consumption max. (no load) | 10 mA |
| housing length | 35 mm |
| switching frequency | < 400 Hz |
| tightening torque max. | 40 Nm |
| special type | enhanced distance (GammaProx) |
| output current | < 100 mA |
