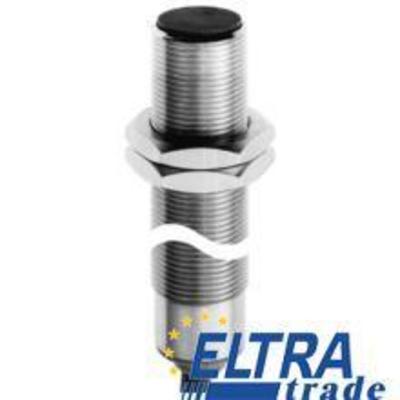

Baumer IWRM 18I9502 Inductive distance measuring sensors

Baumer IWRM 18I9502
Item Number: IWRM 18I9502
mounting typeflush
measuring distance Sd2 ... 4 mm
reference distance2,8 ... 3,2 mm
output circuitcurrent output
operating temperature0 ... +60 °C
195.69
Quantity
-
+
Total price: 195.69
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
output circuit current output
reference distance 2,8 ... 3,2 mm
type cylindrical threaded
operating temperature 0 ... +60 °C
temperature coefficient 1 µm / (K mm)
current consumption max. (no load) 35 mA
load resistance +Vs min. < 500 Ohm
manufacter SKUIWRM 18I9502
IWRM 18I9502 dimension 18 mm
short circuit protection yes
connection types cable, 2 m
mounting type flush
measuring speed < 1 mm / ms
repeat accuracy < 0,02 mm
linearity error ± 80 µm
reverse polarity protection yes
output signal 4 ... 20 mA
residual output ripple < 0,5 % Vs
housing length 65 mm
housing material brass nickel plated
protection class IP 67
measuring distance Sd 2 ... 4 mm
load resistance +Vs max. < 1000 Ohm
voltage supply range +Vs 15 ... 30 VDC
