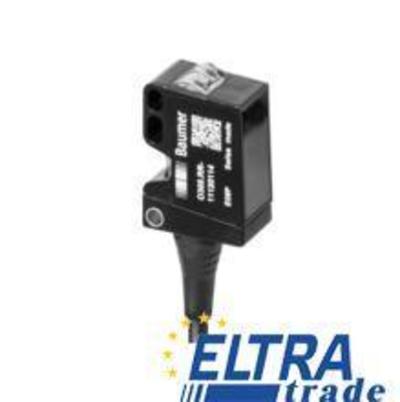

Baumer O300.RR-GL1Z.72CU Retro-reflective sensors
Item Number: O300.RR-GL1Z.72CU
| type | retro-reflective sensor |
| light source | pulsed red LED |
| actual range Sb | 4 m |
| operating temperature | -25 ... +60 °C |
- Overview
- Datasheet
- Alternative numbers
- Comments
| type | rectangular |
| height / length | 32,3 mm |
| alignment optical axis | < 2° |
| output function | light operate |
| wave length | 630 nm |
| polarization filter | yes |
| output current | < 100 mA |
| manufacter SKU | O300.RR-GL1Z.72CU |
| connection types | cable 4 pin, 2 m |
| response time / release time | < 0,49 ms |
| voltage drop Vd | < 3 VDC |
| type | retro-reflective sensor |
| depth | 23 mm |
| protection class | IP 67 |
| current consumption max. (no load) | 30 mA |
| housing material | plastic (ASA, PMMA) |
| short circuit protection | yes |
| power on indication | LED green |
| light source | pulsed red LED |
| sensitivity adjustment | no |
| light indicator | LED yellow |
| output circuit | push-pull |
| current consumption typ. | 30 mA |
| width / diameter | 12,9 mm |
| reverse polarity protection | yes |
| suppression of reciprocal influence | yes |
| front (optics) | PMMA |
| nominal range Sn | 5 m |
| actual range Sb | 4 m |
| operating temperature | -25 ... +60 °C |
| voltage supply range +Vs | 10 ... 30 VDC |
