Baumer O500H.GP-GW1J.PVCV Diffuse sensors with background suppression

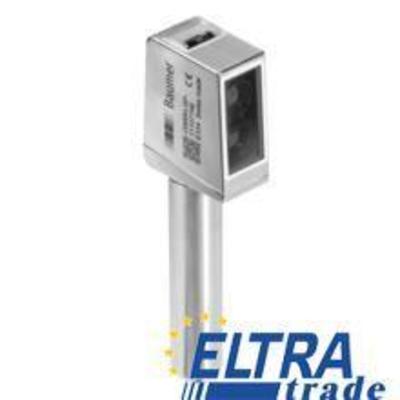

Baumer O500H.GP-GW1J.PVCV
Item Number: O500H.GP-GW1J.PVCV
type background suppression
special typehygienic design
light sourcepulsed PinPoint LED
operating temperature-25 ... +60 °C
541.20
Quantity
-
+
Total price: 541.20
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
output current < 100 mA
manufacter SKUO500H.GP-GW1J.PVCV
light indicator LED yellow
sensing range Tb 30 ... 400 mm
power on indication LED green
housing material stainless steel 1.4404 (V4A)
response time / release time < 0,49 ms
light source pulsed PinPoint LED
operating temperature -25 ... +60 °C
output circuit push-pull
height / length 47,7 mm
short circuit protection yes
current consumption max. (no load) 40 mA
wave length 630 nm
reverse polarity protection yes
voltage supply range +Vs 10 ... 30 VDC
width / diameter 20,2 mm
alignment optical axis < 1°
voltage drop Vd < 3 VDC
connection types cable 4 pin, 2 m
depth 36,4 mm
front (optics) PMMA
sensing distance Tw 60 ... 400 mm
current consumption typ. 30 mA
special type hygienic design
output function light / dark operate
protection class IP 68/69K & proTect+
sensing distance adjustment Teach-in and IO-Link
suppression of reciprocal influence yes
type rectangular
type background suppression
