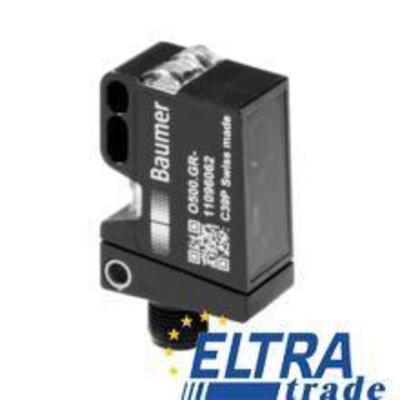

Baumer O500.SP-PV1T.72O SmartReflect Light barriers

Baumer O500.SP-PV1T.72O
Item Number: O500.SP-PV1T.72O
type light barrier
versionstandard object detection
light sourcepulsed PinPoint LED
output circuitPNP complementary
operating temperature-25 ... +60 °C
132.00
Quantity
-
+
Total price: 132.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
light indicator LED green
depth 32 mm
voltage drop Vd < 3 VDC
housing material plastic (ASA, PMMA)
output circuit PNP complementary
voltage supply range +Vs 10 ... 30 VDC
wave length 630 nm
current consumption typ. 30 mA
protection class IP 67
type rectangular
sensing distance adjustment qTeach
short circuit protection yes
suppression of reciprocal influence yes
width / diameter 18 mm
output function light / dark operate
alignment optical axis < 1°
version standard object detection
type light barrier
response time / release time < 0,49 ms
background position Sde 60 ... 600 mm
output indicator LED yellow
height / length 45 mm
light source pulsed PinPoint LED
current consumption max. (no load) 40 mA
front (optics) PMMA
scanning range Sa 90% ... 85% Sde
output current < 100 mA
operating temperature -25 ... +60 °C
connection types connector M12 4 pin
reverse polarity protection yes
manufacter SKUO500.SP-PV1T.72O
