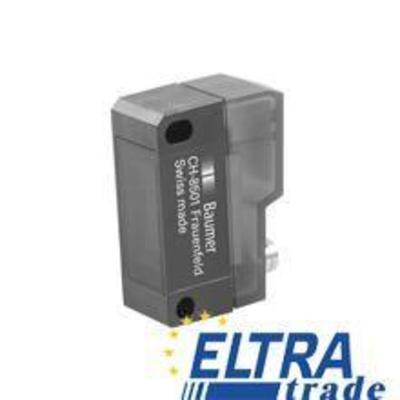

Baumer OEDK 14P5101/S35A Through beam sensors

Baumer OEDK 14P5101/S35A
Item Number: OEDK 14P5101/S35A
type through beam laser sensor
emitter / receiverreceiver
actual range Sb8 m
operating temperature-25 ... +65 °C
177.43
Quantity
-
+
Total price: 177.43
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
output current < 100 mA
operating temperature -25 ... +65 °C
nominal range Sn 10 m
height / length 43 mm
connection types connector M8 4 pin
front (optics) PMMA
current consumption max. (no load) 20 mA
output function light / dark operate
depth 31 mm
short circuit protection yes
sensitivity adjustment no
type rectangular
manufacter SKUOEDK 14P5101/S35A
light indicator LED yellow
voltage supply range +Vs 10 ... 30 VDC
voltage drop Vd < 1,8 VDC
emitter / receiver receiver
response time / release time < 0,5 ms
output circuit PNP
actual range Sb 8 m
width / diameter 14,8 mm
housing material plastic (ASA, MABS)
type through beam laser sensor
alignment / soiled lens indicator flashing light indicator
protection class IP 67
current consumption typ. 20 mA
reverse polarity protection yes
