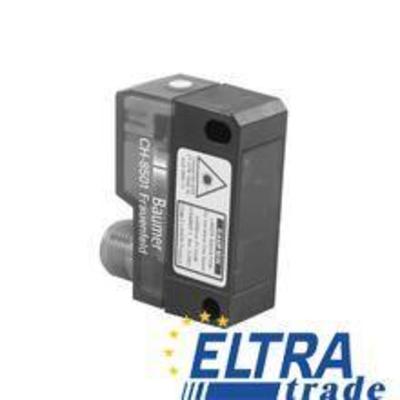

Baumer OHDK 14N5101/S14 Diffuse sensors with background suppression

Baumer OHDK 14N5101/S14
Item Number: OHDK 14N5101/S14
type background suppression
light sourcepulsed red laser diode
sensing distance Tw20 ... 350 mm
operating temperature-10 ... +50 °C
322.30
Quantity
-
+
Total price: 322.30
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
sensing range Tb (at Tw max.) 20 ... 350 mm
output current < 100 mA
width / diameter 14,8 mm
manufacter SKUOHDK 14N5101/S14
current consumption typ. 25 mA
voltage drop Vd < 2,2 VDC
type background suppression
current consumption max. (no load) 35 mA
connection types connector M12 4 pin
operating temperature -10 ... +50 °C
sensing range Tb (at Tw min.) 5 ... 20 mm
sensing distance Tw 20 ... 350 mm
height / length 43 mm
output function light / dark operate
response time / release time < 0,5 ms
type rectangular
distance to focus 115 mm
voltage supply range +Vs 10 ... 30 VDC
power on indication LED green
housing material plastic (ASA, MABS)
short circuit protection yes
light indicator LED yellow
light source pulsed red laser diode
depth 31 mm
output circuit NPN
repeat accuracy < 0,2 mm at laser focus
laser class 2
protection class IP 67
sensing distance adjustment mechanical, 9 turn
wave length 650 nm
reverse polarity protection yes
front (optics) PMMA
