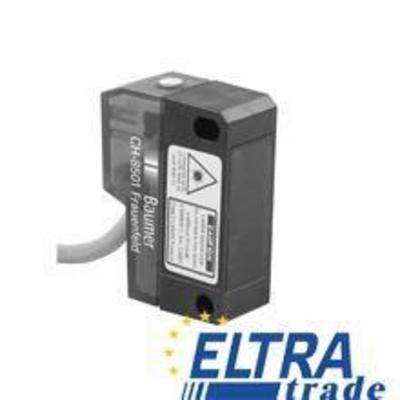

Baumer OHDK 14P5101 Diffuse sensors with background suppression

Baumer OHDK 14P5101
Item Number: OHDK 14P5101
type background suppression
light sourcepulsed red laser diode
sensing distance Tw20 ... 350 mm
operating temperature-10 ... +50 °C
309.10
Quantity
-
+
Total price: 309.10
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
output circuit PNP
response time / release time < 0,5 ms
operating temperature -10 ... +50 °C
short circuit protection yes
type rectangular
output function light / dark operate
sensing distance Tw 20 ... 350 mm
housing material plastic (ASA, MABS)
reverse polarity protection yes
type background suppression
current consumption typ. 25 mA
power on indication LED green
light indicator LED yellow
width / diameter 14,8 mm
front (optics) PMMA
light source pulsed red laser diode
output current < 100 mA
connection types cable 4 pin, 2 m
current consumption max. (no load) 35 mA
voltage supply range +Vs 10 ... 30 VDC
depth 31 mm
sensing distance adjustment mechanical, 9 turn
protection class IP 67
manufacter SKUOHDK 14P5101
sensing range Tb (at Tw max.) 20 ... 350 mm
sensing range Tb (at Tw min.) 5 ... 20 mm
voltage drop Vd < 2,2 VDC
laser class 2
height / length 43 mm
wave length 650 nm
repeat accuracy < 0,2 mm at laser focus
distance to focus 115 mm
