Baumer OHDM 16P5012 Diffuse sensors with background suppression

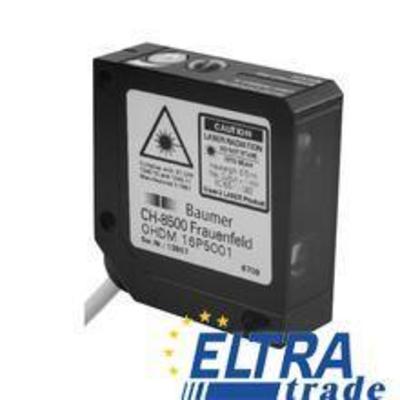

Baumer OHDM 16P5012
Item Number: OHDM 16P5012
type background suppression
light sourcepulsed red laser diode
sensing distance Tw25 ... 300 mm
operating temperature-10 ... +50 °C
653.40
Quantity
-
+
Total price: 653.40
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
width / diameter 15,4 mm
distance to focus 60 mm
voltage supply range +Vs 10 ... 30 VDC
height / length 50 mm
type rectangular
output indicator LED yellow
sensing range Tb (at Tw min.) 5 ... 25 mm
reverse polarity protection yes
type background suppression
housing material die-cast zinc
voltage drop Vd < 2 VDC
short circuit protection yes
response time / release time < 0,1 ms
sensing range Tb (at Tw max.) 40 ... 300 mm
output function light / dark operate
sensing distance Tw 25 ... 300 mm
manufacter SKUOHDM 16P5012
light source pulsed red laser diode
sensing distance adjustment mechanical, 8 turn
depth 50 mm
output circuit PNP
protection class IP 67
wave length 650 nm
front (optics) glass
operating temperature -10 ... +50 °C
repeat accuracy < 0,1 mm at laser focus
connection types cable 4 pin, 2 m
laser class 2
current consumption max. (no load) 35 mA
output current < 200 mA
current consumption typ. 25 mA
