Baumer OPDK 14P1903 Retro-reflective sensors

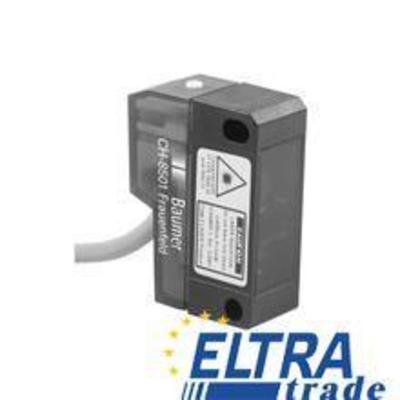

Baumer OPDK 14P1903
Item Number: OPDK 14P1903
type retro-reflective laser sensor
versionfor transparent objects
single lens optics
light sourcepulsed red laser diode
operating temperature-10 ... +50 °C
391.60
Quantity
-
+
Total price: 391.60
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
response time / release time < 0,25 ms
wave length 650 nm
voltage supply range +Vs 10 ... 30 VDC
short circuit protection yes
polarization filter yes
current consumption typ. 25 mA
output current < 100 mA
power on indication LED green
manufacter SKUOPDK 14P1903
actual range Sb 4,5 m
reverse polarity protection yes
distance to focus 100 mm
output circuit PNP
nominal range Sn 5,2 m
connection types cable 4 pin, 2 m
height / length 43 mm
light source pulsed red laser diode
protection class IP 67
light indicator LED yellow
sensitivity adjustment Teach-in
repeat accuracy < 0,1 mm at laser focus
front (optics) PMMA
operating temperature -10 ... +50 °C
teach value stored after power-off non volatile
output function light operate
depth 31 mm
current consumption max. (no load) 35 mA
type retro-reflective laser sensor
laser class 1
type rectangular
version for transparent objects
single lens optics
voltage drop Vd < 2,2 VDC
housing material plastic (ASA, MABS)
width / diameter 14,8 mm
