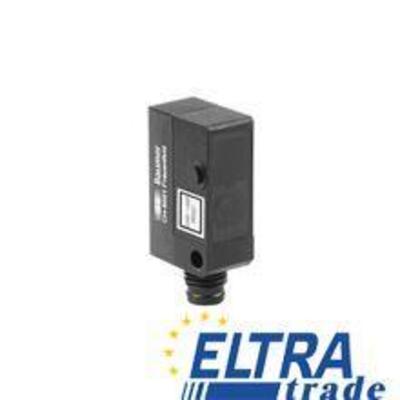

Baumer OSDK 10D9005/S35A Through beam sensors

Baumer OSDK 10D9005/S35A
Item Number: OSDK 10D9005/S35A
type through beam laser sensor
emitter / receiveremitter
light sourcepulsed red laser diode
operating temperature-10 ... +50 °C
233.42
Quantity
-
+
Total price: 233.42
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
type rectangular
nominal range Sn 10 m
type through beam laser sensor
protection class IP 67
actual range Sb 8 m
manufacter SKUOSDK 10D9005/S35A
operating temperature -10 ... +50 °C
distance to focus parallel beam
height / length 27 mm
depth 16,3 mm
width / diameter 10,4 mm
housing material plastic (ASA)
emitter / receiver emitter
front (optics) PMMA
current consumption typ. 25 mA
voltage supply range +Vs 11 ... 30 VDC
laser class 1
current consumption max. (no load) 30 mA
light source pulsed red laser diode
reverse polarity protection yes
wave length 650 nm
connection types connector M8 4 pin
