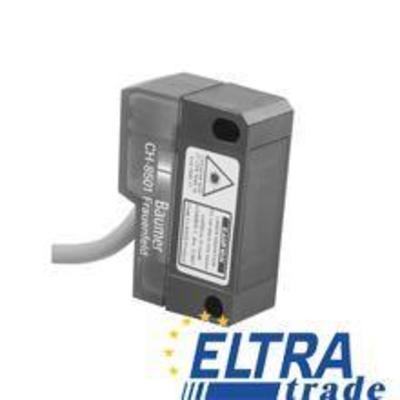

Baumer OSDK 14D9001 Through beam sensors

Baumer OSDK 14D9001
Item Number: OSDK 14D9001
type through beam laser sensor
emitter / receiveremitter
light sourcepulsed red laser diode
operating temperature10 ... +50 °C
215.49
Quantity
-
+
Total price: 215.49
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
emitter / receiver emitter
type through beam laser sensor
laser class 1
current consumption max. (no load) 35 mA
depth 31 mm
width / diameter 14,8 mm
operating temperature 10 ... +50 °C
actual range Sb 8 m
connection types cable 4 pin, 2 m
reverse polarity protection yes
front (optics) PMMA
housing material plastic (ASA, MABS)
wave length 650 nm
nominal range Sn 10 m
height / length 43 mm
manufacter SKUOSDK 14D9001
power on indication LED green
light source pulsed red laser diode
current consumption typ. 25 mA
type rectangular
voltage supply range +Vs 10 ... 30 VDC
distance to focus parallel beam
protection class IP 67
