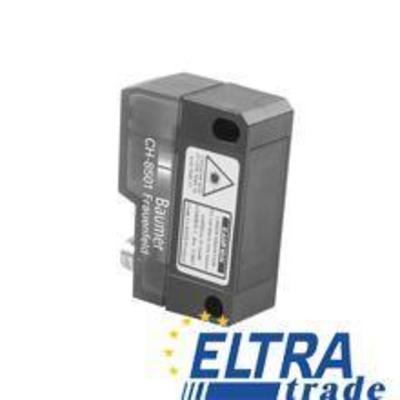

Baumer OSDK 14D9001/S35A Through beam sensors

Baumer OSDK 14D9001/S35A
Item Number: OSDK 14D9001/S35A
type through beam laser sensor
emitter / receiveremitter
light sourcepulsed red laser diode
operating temperature10 ... +50 °C
213.51
Quantity
-
+
Total price: 213.51
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
current consumption max. (no load) 35 mA
operating temperature 10 ... +50 °C
connection types connector M8 4 pin
laser class 1
emitter / receiver emitter
nominal range Sn 10 m
power on indication LED green
front (optics) PMMA
current consumption typ. 25 mA
housing material plastic (ASA, MABS)
width / diameter 14,8 mm
type rectangular
actual range Sb 8 m
wave length 650 nm
height / length 43 mm
voltage supply range +Vs 10 ... 30 VDC
manufacter SKUOSDK 14D9001/S35A
light source pulsed red laser diode
distance to focus parallel beam
reverse polarity protection yes
depth 31 mm
type through beam laser sensor
protection class IP 67
