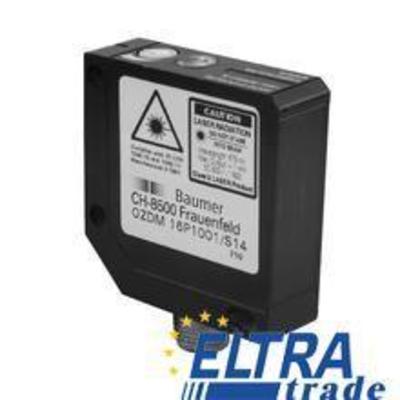

Baumer OZDM 16P3001/S14 Diffuse contrast sensors

Baumer OZDM 16P3001/S14
Item Number: OZDM 16P3001/S14
type diffuse contrast sensor
light sourcepulsed red laser diode
sensing distance Tw0 ... 250 mm
operating temperature-10 ... +50 °C
477.40
Quantity
-
+
Total price: 477.40
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments
connection types connector M12 4 pin
voltage drop Vd < 2 VDC
output circuit PNP
light source pulsed red laser diode
height / length 50 mm
laser class 1
width / diameter 15,4 mm
distance to focus 80 mm
current consumption typ. 60 mA
optimum operating distance 40 ... 80 mm
sensing distance Tw 0 ... 250 mm
wave length 650 nm
front (optics) glass
type rectangular
output function dark operate
sensitivity adjustment potentiometer, 14 turn
response time / release time < 0,05 ms
type diffuse contrast sensor
detectable remission difference (on grey) > 8 %
housing material die-cast zinc
output indicator LED yellow
short circuit protection yes
depth 50 mm
output current < 200 mA
protection class IP 67
voltage supply range +Vs 12 ... 30 VDC
reverse polarity protection yes
current consumption max. (no load) 65 mA
operating temperature -10 ... +50 °C
manufacter SKUOZDM 16P3001/S14
repeat accuracy < 0,1 mm at laser focus
