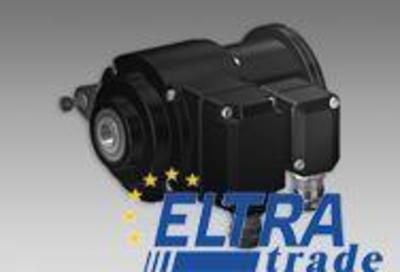

Baumer HOG 10 + ESL 90 Incremental encoders
Item Number: HOG 10 + ESL 90
| Interference immunity | - |
| Voltage supply | 9...30 VDC; 5 VDC ±5 % |
| Consumption w/o load | ≤100 mA |
| Operating temperature | -20...+85 °C |
- Overview
- Datasheet
- Alternative numbers
- Comments
| Switching hysteresis | =30 % of switching speed |
| Output stages | HTL-P (power linedriver) TTL/RS422 |
| Output frequency | ≤120 kHz ≤300 kHz (on request) |
| manufacter SKU | HOG 10 + ESL 90 |
| Operating temperature | -20...+85 °C |
| Switching delay time | ≤40 ms |
| Transmission length | ≤350 m at 100 kHz (HTL-P) ≤550 m at 100 kHz (TTL) |
| Range of switching speed (ns) | 650...6000 rpm |
| Switching outputs | 1 output, speed control |
| Switching accuracy | ±4 % (≤1500 rpm) ±2 % (>1500 rpm) |
| Rotor moment of inertia | 680 gcm² |
| HOG 10 + ESL 90 output signals | K1, K2, K0 + inverted Error output (only EMS) |
| Size (flange) | ø105 mm |
| Emitted interference | EN 61000-6-3 |
| Weight approx. | 2.3 kg 2.5 kg (with option M) |
| Operating torque typ. | 6 Ncm |
| Output switching capacity | ≤6 A / 250 VAC; ≤1 A / 48 VDC |
| Phase shift | 90° ±20° |
| Reference signal | Zero pulse, width 90° |
| Pulses per revolution | 300...5000 |
| Admitted shaft load | ≤450 N axial ≤600 N radial |
| Voltage supply | 9...30 VDC; 5 VDC ±5 % |
| Connection | 2x terminal box 3x terminal box (with option M) |
| Interference immunity | - |
| Scan ratio | 40...60 % |
| Interference immunity | EN 61000-6-2 |
| Shaft type | ø16...20 mm (blind hollow shaft) ø17 mm (cone shaft 1:10) |
| Consumption w/o load | ≤100 mA |
| Resistance | IEC 60068-2-6 Vibration 5 g, 10-2000 Hz IEC 60068-2-27 Shock 50 g, 6 ms |
| Materials | Housing: aluminium die-cast Shaft: stainless steel |
| Protection DIN EN 60529 | IP 66 |
| Approval | CE |
| Minimum switching current | 100 mA |
| Operating speed | ≤6000 rpm |
| Shaft insulation | 2.8 kV |
