Endress+Hauser Liquid analysis

Measurement range

0 to 2.5 AU
0 to 50 OD (depending on optical pathlength)

Process temperature

0 to 90 В°C (32 to 194 В°F) continuous
Max. 130 В°C (266 В°F) for 2 hours

Process pressure

Max. 100 bar (1450 psi) absolute, depending on the material, pipe size and process connection of the flow assembly

Measurement range

0 to 2.5 AU
0 to 50 OD (depending on optical pathlength)

Process temperature

0 to 90 В°C (32 to 194 В°F) continuous
Max. 130 В°C (266 В°F) for 2 hours

Process pressure

Max. 100 bar (1450 psi) absolute, depending on the material, pipe size and process connection of the flow assembly

Measurement range

0 to 4 AU
0 to 8 OD (depending on optical path length)

Process temperature

0 to 90 В°C (32 to 194 В°F)
Max. 135 В°C for max. 2 hours

Process pressure

Max. 10 bar abs at 90 В°C
(Max. 150 psi at 194 В°F)

Measurement range

0 to 200 FTU
0 to 200 ppm DE

Process temperature

0 to 90 В°C (32 to 194 В°F) continuous
Max. 130 В°C (266 В°F) for 2 hours

Process pressure

Max. 100 bar (1450 psi)
(depending on flow through assembly)

Measured Variables

Concentration
Cell Pressure
Cell Temperature

Hazardous area approvals

ATEX / IECEx - Zone 2
CSA Class I, Division 2

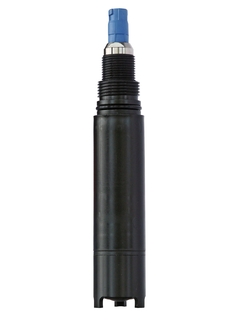

Liquid Oxygen Sensor

Measurement range

0.001 to 20 mg/l
0 to 200 %SAT
0 to 400 hPa

Process temperature

-5 to 135 В°C (23 to 275 В°F)

Process pressure

1 to 12 bar abs (14.5 to 174 psi)

Liquid Oxygen Sensor

Measurement range

0,05 - 20mg/l

Process temperature

max. 50В°C
(122В°F)

Process pressure

max. 10bar
(145psi)

Liquid Oxygen Sensor

Measurement range

0.01 to 100 mg/l
0.00 to 1000 %SAT
0 to 2000 hPa

Process temperature

-5 to 50 В°C
(20 to 120 В°F)

Process pressure

max. 10 bar
(max. 145 psi)

Liquid Oxygen Sensor

Measurement range

0mg/l ... 20mg/l
0%SAT ... 200%SAT
0 ... 400hPa

Process temperature

-5В°C ... 60В°C
( 23 - 140В°F)

Process pressure

max. 10bar
(145psi)

Liquid Oxygen Sensor

Measurement range

0 to 20 mg/l
0 to 200 %SAT
0 to 400 hPa

Process temperature

-5 to 60 В°C
(20 to 140 В°F)

Process pressure

Max. 10 bar abs
(Max. 145 psi)

Liquid Oxygen Sensor

Liquid Oxygen Sensor

Liquid Oxygen Sensor

Liquid Oxygen Sensor

Highly precise pH buffers for all industries.

Sensor for analysis of disinfectants in liquid

Compact pH electrode

Measurement range

pH 1-13 (<100ВµS/cm)

Process temperature

2В°C - 75В°C
(36В°F - 167В°F)

Process pressure

max. 3 bar
(43.5 psi)

Measures continuously all parameters relevant for the fermentation process. For transparency in fermentation processes, for example in beer..

Sampling probe compatibility

Raman Rxn-10 probe

Wetted materials

Body: 316L stainless steel
Window: Proprietary material, optimized for bioprocesses
Process connection: PG13.5
Surface finish: Ra 15 with Electropolish to ASME BPE SF4 finish
Adhesive: USP Class VI and ISO 10993 compatible

Sterilization method

Autoclave

Sampling probe compatibility

Raman Rxn-10 (with accessory optics)
Raman Rxn-20 (with accessory optics)
Raman Rxn-40
Raman Rxn-41
Raman Rxn-45

Spectral intensity reference

NIST SRM glass

Temperature

Range: -40 to 70 В°C

Sampling probe compatibility

Raman Rxn-10 (with accessory optics)
Raman Rxn-20 (with accessory optics)
Raman Rxn-40

Safety features

Electrical interlock

Sampling probe compatibility

Raman Rxn-10 probe

Wetted materials

Metal: C276 alloy as standard (316L stainless steel or Grade 2 titanium upon request)
Window: high-purity sapphire, proprietary compression fit non-brazed design

Sampling probe compatibility

Raman Rxn-10 probe

Sampling probe compatibility

Raman Rxn-10 probe

Laser wavelength

With immersion optic:
532 nm, 785 nm, 1000 nm
With bIO-Optic:
785 nm, 1000 nm
With Raman optic system for single use:
785 nm, 1000 nm

Body and window materials

Rxn-10 probe body: 6061 aluminum, 316L stainless steel, and 303 stainless steel

Laser wavelength

785 nm

Body and window materials

Body: 316L stainless steel
Window: optical-grade materials

Hazardous area certifications

ATEX, CSA, IECEx
