Capacitive proximity sensors

nominal sensing distance Sn	12 mm
mounting type	flush
GND electrode	no
operating temperature	-25 ... +75 °C

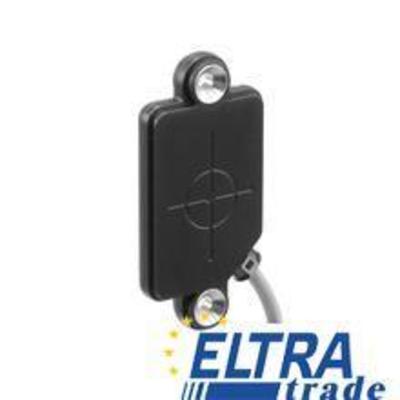

Baumer CFDK 25G1125/LN6

Capacitive proximity sensors

nominal sensing distance Sn	15 mm
mounting type	non-flush
GND electrode	no
operating temperature	-25 ... +75 °C

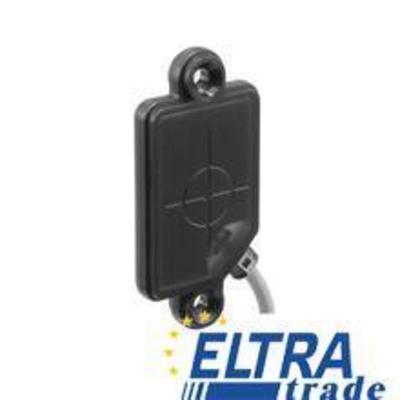

Baumer CFDK 25G1155/LN2

Capacitive proximity sensors

nominal sensing distance Sn	3 mm ±1 mm
mounting type	flush
GND electrode	no
operating temperature	10 ... +65 °C

Baumer CFDK 25G3125/LN1

Capacitive proximity sensors

nominal sensing distance Sn	2 mm
mounting type	flush
GND electrode	no
operating temperature	-25 ... +75 °C

Baumer CFDK 25G3125/LN3

Capacitive proximity sensors

nominal sensing distance Sn	4 mm
mounting type	flush
GND electrode	no
operating temperature	-25 ... +75 °C

Baumer CFDK 25G3125/LN4

Capacitive proximity sensors

nominal sensing distance Sn	8 mm
mounting type	flush
GND electrode	no
operating temperature	-25 ... +75 °C

Baumer CFDK 25G3125/LN5

Capacitive proximity sensors

nominal sensing distance Sn	12 mm
mounting type	flush
GND electrode	no
operating temperature	-25 ... +75 °C

Baumer CFDK 25G3125/LN6

Capacitive proximity sensors

nominal sensing distance Sn	15 mm
mounting type	non-flush
GND electrode	no
operating temperature	-25 ... +75 °C

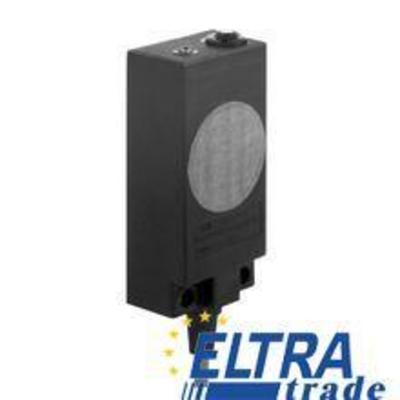

Baumer CFDK 30N1600

Capacitive proximity sensors

nominal sensing distance Sn	15 mm
nominal sensing distance Sn adjustable	4 ... 15 mm
mounting type	flush
output circuit	NPN make function (NO)
operating temperature	-25 ... +75 °C

Baumer CFDK 30N1600/S14

Capacitive proximity sensors

nominal sensing distance Sn	15 mm
nominal sensing distance Sn adjustable	4 ... 15 mm
mounting type	flush
output circuit	NPN make function (NO)
operating temperature	-25 ... +75 °C

Baumer CFDK 30N3600

Capacitive proximity sensors

nominal sensing distance Sn	15 mm
nominal sensing distance Sn adjustable	4 ... 15 mm
mounting type	flush
output circuit	NPN break function (NC)
operating temperature	-25 ... +75 °C

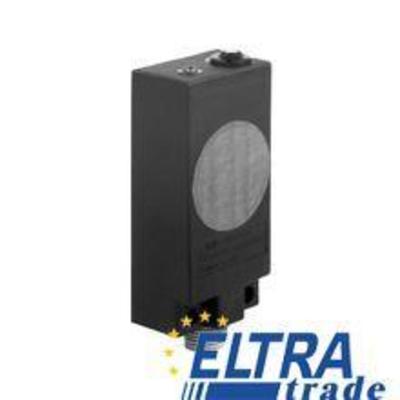

Baumer CFDK 30N3600/S14

Capacitive proximity sensors

nominal sensing distance Sn	15 mm
nominal sensing distance Sn adjustable	4 ... 15 mm
mounting type	flush
output circuit	NPN break function (NC)
operating temperature	-25 ... +75 °C

Baumer CFDK 30P1600

Capacitive proximity sensors

Operational characteristics: nominal sensing distance Sn 15 mm, nominal sensing distance Sn adjustable 4 ... 15 mm, mounting type: flush, output circuit: PNP make function (NO), operating temperature -25 ... +75 °C

Baumer CFDK 30P1600/S14

Capacitive proximity sensors

nominal sensing distance Sn	15 mm
nominal sensing distance Sn adjustable	4 ... 15 mm
mounting type	flush
output circuit	PNP make function (NO)
operating temperature	-25 ... +75 °C

Baumer CFDK 30P3600

Capacitive proximity sensors

nominal sensing distance Sn	15 mm
nominal sensing distance Sn adjustable	4 ... 15 mm
mounting type	flush
output circuit	PNP break function (NC)
operating temperature	-25 ... +75 °C

Baumer CFDK 30P3600/S14

Capacitive proximity sensors

nominal sensing distance Sn	15 mm
nominal sensing distance Sn adjustable	4 ... 15 mm
mounting type	flush
output circuit	PNP break function (NC)
operating temperature	-25 ... +75 °C

Baumer CFDM 20N1500/S35L

Capacitive proximity sensors

nominal sensing distance Sn	5 mm
mounting type	flush
GND electrode	yes
output circuit	NPN make function (NO)
operating temperature	-25 ... +75 °C

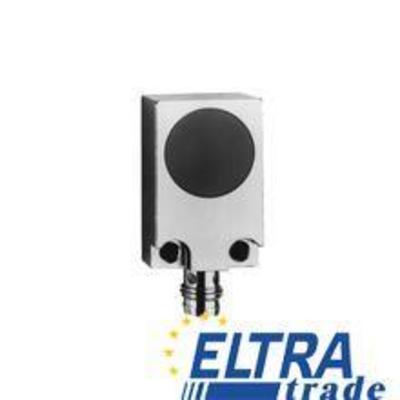

Baumer CFDM 20N3500/S35L

Capacitive proximity sensors

nominal sensing distance Sn	5 mm
mounting type	flush
GND electrode	yes
output circuit	NPN break function (NC)
operating temperature	-25 ... +75 °C

Baumer CFDM 20P1500/S35L

Capacitive proximity sensors

nominal sensing distance Sn	5 mm
mounting type	flush
GND electrode	yes
output circuit	PNP make function (NO)
operating temperature	-25 ... +75 °C

Baumer CFDM 20P3500/S35L

Capacitive proximity sensors

nominal sensing distance Sn	5 mm
mounting type	flush
GND electrode	yes
output circuit	PNP break function (NC)
operating temperature	-25 ... +75 °C

Baumer EEx GP 0,2

Reversal tolerance	≤0.1 %
Linearity tolerance	≤0.15 %
Temperature coefficient	±0.06 %/K (open-circuit)

Baumer EEx HOG 161

Voltage supply	9...30 VDC 5 VDC ±5 % 9...26 VDC
Consumption w/o load	≤100 mA
Pulses per revolution	250...2500

Baumer EEx OG 9

Voltage supply	9...30 VDC 5 VDC ±5 % 9...26 VDC
Consumption w/o load	≤100 mA
Pulses per revolution	25...5000

Baumer EEx OG 9 S

Voltage supply	5 VDC ±5 % 9...30 VDC
Consumption w/o load	≤90 mA
Sinewave cycles per turn	1024...2048

Baumer EIL580-B - blind hollow shaft

Voltage supply	5 VDC ±5 % 8...30 VDC 4.75...30 VDC
Reverse polarity protection	Yes
Short-circuit proof	Yes (HTL) Yes (TTL, max. 1 s and 1 signal)
Operating temperature	-40...+85 °C
