Baumer Encoders

ge244

• Size (flange): Ø58 mm
• Shaft type: Ø10 mm solid shaft
• Flange: Clamping flange
• Protection: EN 60529 IP 67

ge355

• Size (flange): ø58 mm
• Shaft type: ø10 mm solid shaft (clamping flange)
• Permissible load on the shaft: ≤20 N axial, ≤40 N radial
• Flange: Clamping flange

ge404

• Size (flange): ø58 mm.
• Shaft type: ø10 mm solid shaft.
• Flange: Clamping flange.
• Protection EN 60529: IP 67.
• Supply voltage: 10...30 V DC.

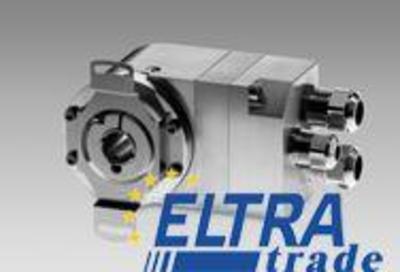

GEMMH

• Reading method: Optical
• Resolution:
• Single revolution: 13 bits
• Multi-turn: 16 bits
• Hollow shaft diameter: up to 14 mm
• Interfaces: CANopen®, EtherNet/IP, Profibus-DP, PROFINET
• Resistance to magnetic fields
• Self-diagnosis: High reliability thanks to self-diagnosis

Baumer GEMMW

• Solid shaft with clamping or synchro flange, stainless steel housing
• Optical sensing method
• Resolution: singleturn 13 bit, multiturn 16 bit
• CANopen®, Profibus-DP
• Material: stainless steel 1.4305

GI341

• Blind or through hollow shaft up to ø15 mm
• Max. 2048 pulses per revolution
• Optical sensing method
• Flange and housing made of high-tech plastics
• Tangential cable output

GI342

• Encoder with blind or through hollow shaft ø10...15 mm
• Max. 2048 pulses per revolution
• Optical sensing method
• Flange and housing made of high-tech plastics

GI352

• Size (flange): ø58 mm
• Shaft type: ø10...15 mm (through hollow shaft)
• Protection according to EN 60529: IP 54
• Operating speed: ≤6000 rpm

GI356 incremental encoder - converts rotational motion into electronic signals for speed and position estimation.

• Size (flange): ø58 mm
• Shaft type: ø6 mm solid shaft
• Reading method: Optical

 Baumer GI357

• Encoder with solid shaft ø10 mm or ø6 mm
• Max. 5000 pulses per revolution
• Optical sensing method
• Clamping or synchro flange
• High rotation speed up to 10000 rpm

Baumer gm400

• Size (flange): Ø58 mm
• Shaft type: Ø10 mm solid shaft
• Flange: Clamping flange

gm401

• Technical data - mechanical design
• Size (flange): ø58 mm
• Shaft type: ø6 mm solid shaft
• Flange: Synchronous flange
• Reading method: Optical
• Code: Gray or binary

GMP 1,0 Tachogenerators

• Solid shaft ø11 to ø14 mm with flange
• Low response time
• Open circuit voltage 40...175 mV per rpm
• Redundant output (GMPZ)

GMPZ 1,0

• Low response time
• Open circuit voltage 40...175 mV per rpm
• Redundant output (GMPZ)

Baumer GT 7.16

• Size (flange): ø58 mm
• Shaft type: ø6 mm solid shaft (synchronous flange), ø10 mm solid shaft (flange mounting)
• Permissible shaft load: ≤20 N axially, ≤40 N radially
• Flange: Mounting or synchronous flange

GT 9 is a high-precision tachogenerator

• Open circuit voltage 10...20 mV per rpm
• Blind hollow shaft ø12...16 mm or cone shaft ø17 mm (1:10)
• High signal quality due to patented LongLife technology
• No auxiliary energy source required

art. 11002434

Baumer GTB 9.06

• Size (flange): ø95 mm
• Shaft type: Tubular shaft ø12...16 mm or tapered shaft ø17 mm (1:10)
• Protection EN 60529: IP 68

GTB 9.16

• High protection IP 68
• Connector output
• No auxiliary energy source required

Tachogenerators GTF 7.08

• High signal quality due to patented LongLife technology
• Temperature compensation of tacho voltage as standard
• Low moment of inertia
• No auxiliary energy source required

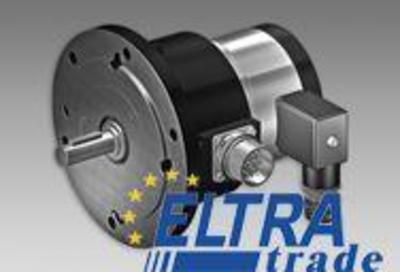

GTF 7.16 DC tachogenerator

• Solid shaft ø11 mm with EURO flange B10, housing ø115 mm
• Open circuit voltage 60 V per 1000 rpm
• Temperature compensated
• EURO flange B10

 Baumer GTR 9

• Open circuit voltage 20...60 mV per rpm
• Blind hollow shaft ø16 mm
• High signal quality due to patented LongLife technology
• Connector output

GXM2S is a high-resolution absolute encoder

• Optical sensing method
• Resolution: singleturn 14 bit, multiturn 12 bit
• Blind hollow shaft ø12...ø15 mm
• Electronic setting of zero point
• Counting direction input

Baumer GXM7W - RS485

• Optical sensing method
• Resolution: singleturn 13 bit, multiturn 12 bit
• Clamping or synchro flange
• Up to 4 bus users

GXM7W.A102101 art. 11032418

gxmms

• Size (flange): ø58 mm
• Relative humidity: 95 % non-condensing
• Resistance: EN 60068-2-6
• Code: Binary
• Code sequence: CW/CCW programmable

baumer gxmms

• Encoder multiturn / bus cover
• Optical sensing method
• Resolution: singleturn 13 bit, multiturn 16 bit
• Blind hollow shaft ø12...ø15 mm
• High resistance to shock and vibrations
• CANopen®, EtherCAT, EtherNet/IP, SAEJ1939, PROFINET, Profibus, SSI
• Code continuity check optional by bus
• Two incremental tracks A and B
• Maximum resistant against magnetic fields

baumer gxmmw

• Size (flange): ø58 mm
• Shaft type: ø10mm solid shaft (clamping flange), ø6mm solid shaft (synchronized flange)
• Flange: Clamping or synchronous flange
• Function: Multi-turn

GXMMW + incremental

• Size (flange): Ø58 mm.
• Code: Binary.
• Code sequence: CW/CCW programmable.
• Initial acceleration: ≤1000 U/s².
